DOUBLE INSULATED LADDER

High-performance insulated unit

Use : Ultra intensive

Download the product data sheet

The Tubesca Comabi self-stable Dobble insulating ladder with fibreglass uprights provides access to a maximum height of 2.84 metres while complying with the EN 50528 and EN 57418/EN 131 standards and decree 96-333.

Fiberglass uprights for protection against electric shocks up to 1, volts.

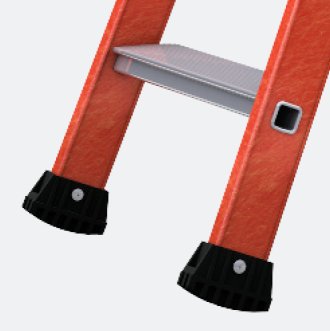

Aluminium steps 8 mm wide for extra-light weight.
Retaining strap.
* Standard EN 5528 defines values for protecting users against low voltage currents up to 1,5 volts. The flashover test is done at 1, volts.

Download the product data sheet

Use : Ultra intensive

See the
different models

Max work / access height (m)

1,92m

Ref : 04255004	Product overall height (m) : 1,02m	Number of rungs / steps : 2x4
Weight (kg) : 6,00kg	Wheelbase (m) : 1,00	Section : 66
Min work / access height (m) : 1,92m	Max work / access height (m) : 1,92m	EAN barcode : 3178740020187

2,38m

Ref : 04255006	Product overall height (m) : 1,48m	Number of rungs / steps : 2x6
Weight (kg) : 9,00kg	Wheelbase (m) : 1,38	Section : 66
Min work / access height (m) : 2,38m	Max work / access height (m) : 2,38m	EAN barcode : 3178740020194

2,84m

Ref : 04255008	Product overall height (m) : 1,94m	Number of rungs / steps : 2x8
Weight (kg) : 12,00kg	Wheelbase (m) : 1,75	Section : 66
Min work / access height (m) : 2,84m	Max work / access height (m) : 2,84m	EAN barcode : 3178740020200

Technical
features

Technical features	Description
Use	Ultra intensive
Type of floor	Flat floor
Max access / working height (m)	2,84m
Material	Fiberglass
Maximum load (kg)	150kg
Warranty (years)	2
Standard	EN 131 ; EN 50528
Decree	96333
