MECA MODUL PLATFORM 2 STEPS

The right answer

New

Use : Intensive

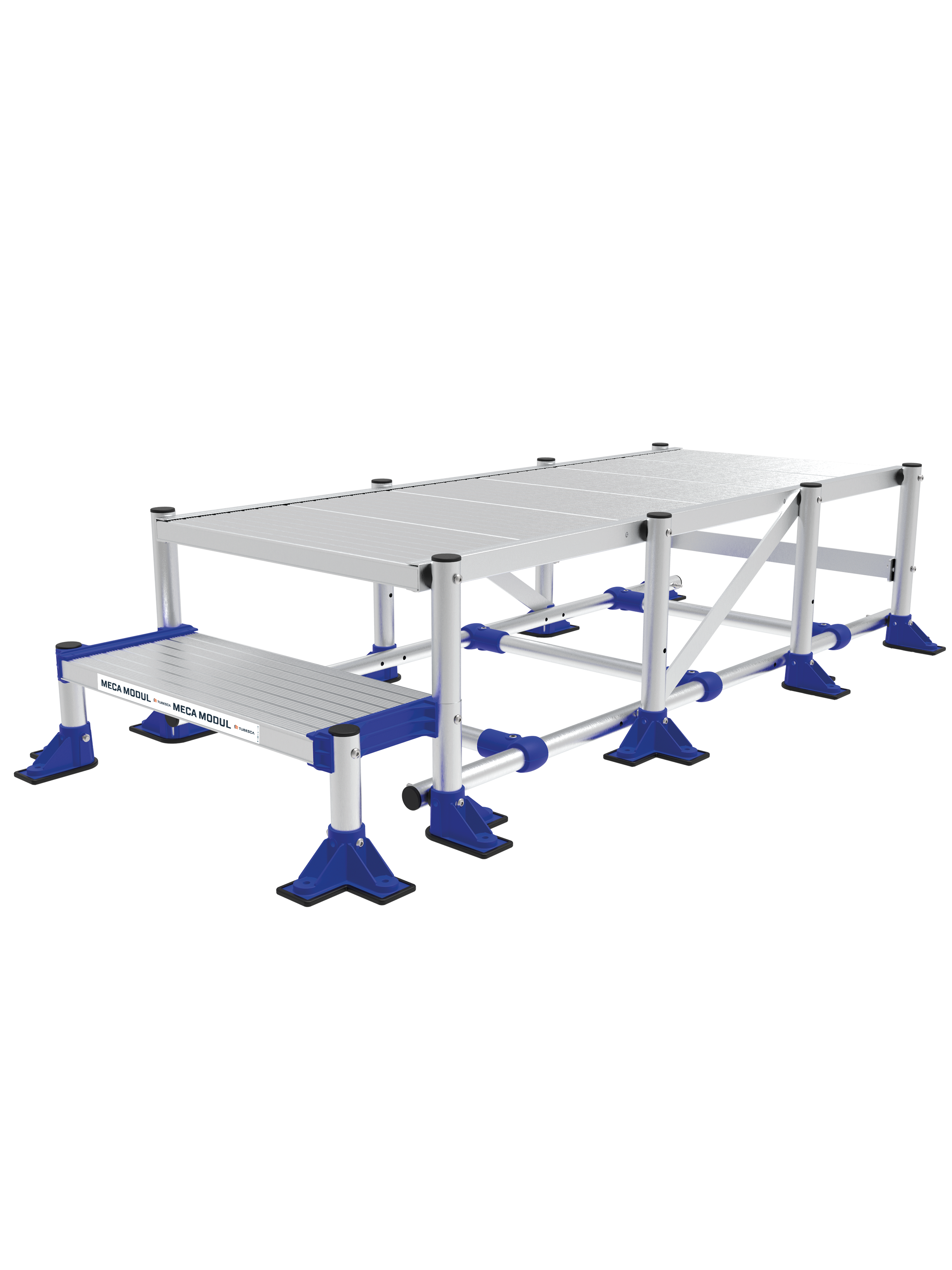

Low-height access platform from the Meca Modul range. Meca Modul is a standardised solution adaptable to your specific needs enabling you to work, move around and access safely in an industrial environment. This platform meets the EN 14 122 standard requirements.

Product that can be fixed to the floor.
Available in platform lengths of 1 m, 1,5 m and 2 m
Platform width: 596 mm
Total width: 836 mm

Use : Intensive

See the
different models

Max work / access height (m)

2,39m

Ref : 02380263	Work / access height (m) : 2,39m	Number of rungs / steps : 2
Platform height (m) : 0,39	Total lenght (m) : 2.40	Platform length (m) : 2.00
Exterior dimensions Width (mm) : 840	Weight (kg) : 23,80kg	EAN barcode : 3178740223397

2,39m

Ref : 02380262	Work / access height (m) : 2,39m	Number of rungs / steps : 2
Platform height (m) : 0,39	Exterior dimensions Width (mm) : 840	Weight (kg) : 19,60kg
EAN barcode : 3178740223380

2,39m

Ref : 02380261	Work / access height (m) : 2,39m	Number of rungs / steps : 2
Platform height (m) : 0,39	Platform length (m) : 1.00	Exterior dimensions Width (mm) : 840
Weight (kg) : 14,10kg	EAN barcode : 3178740223373
