MECA MODUL WALKWAY 3 STEPS 2GR

The right answer

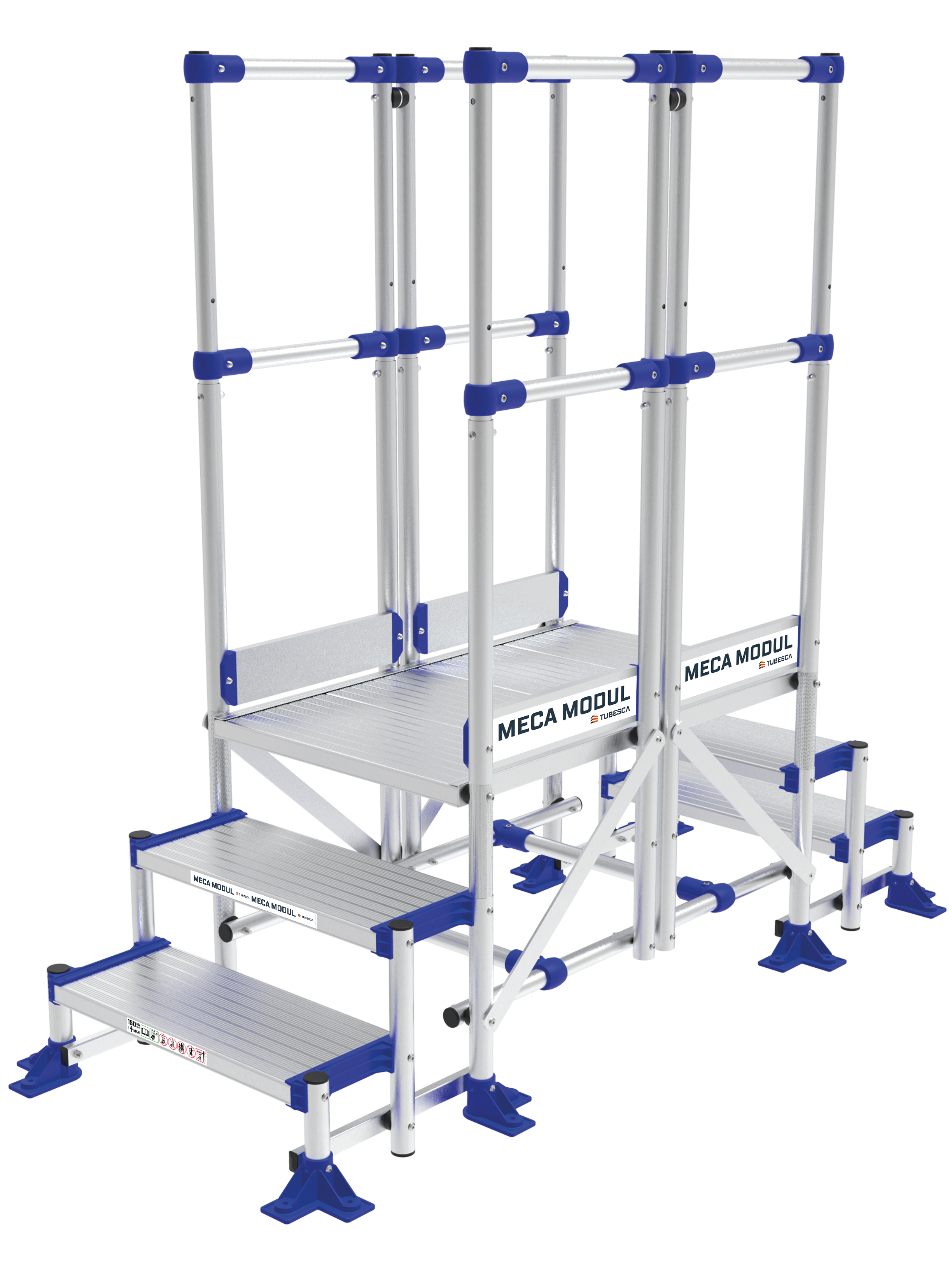

Industrial walkway combining comfort, safety and scalability of the Meca Modul range. Meca Modul is a standardised solution adaptable to your specific needs enabling you to work, move around and access safely in an industrial environment. This walkway meets the EN 14 122 standard requirements.
  • Industrial walkway combining comfort, safety and scalability.
  • Product that can be fixed to the floor.
  • Access ramps are optional to increase fall protection
  • This product is a means of access and not a workstation.
  • Order the Meca Modul Gate for a workstation model.
  • Platform width : 596 mm
    Total width : 836 mm
    Total height : 1.74 m

Max work / access height (m)

Ref : 02380344Work / access height (m) : 2,58mNumber of rungs / steps : 3
Platform height (m) : 0,58Platform length (m) : 2.00Clearance under the platform Hxl (m) : 0,15 x 1,75 m
Exterior dimensions Width (mm) : 840Weight (kg) : 61,50kgEAN barcode : 3178740223205
Ref : 02380343Work / access height (m) : 2,58mNumber of rungs / steps : 3
Platform height (m) : 0,58Clearance under the platform Hxl (m) : 0,15 x 1,25 mExterior dimensions Width (mm) : 840
Weight (kg) : 49,90kgEAN barcode : 3178740223199
Ref : 02380342Work / access height (m) : 2,58mNumber of rungs / steps : 3
Platform height (m) : 0,58Platform length (m) : 1.00Clearance under the platform Hxl (m) : 0,15 x 0,75 m
Exterior dimensions Width (mm) : 840Weight (kg) : 38,30kgEAN barcode : 3178740223182
Ref : 02380341Work / access height (m) : 2,58mNumber of rungs / steps : 3
Platform height (m) : 0,58Clearance under the platform Hxl (m) : 0,15 x 0,25 mExterior dimensions Width (mm) : 840
Weight (kg) : 26,80kgEAN barcode : 3178740223175
Technical featuresDescription
UseIntensive
StandardEN 14122
Warranty (years)2
Max load (kg / m²)200kg/m²
Type of floorFlat floor
MaterialAluminium
