NEOLIUM SX

THE ˮALL-PURPOSEˮ UNIT

Neolium SX aluminium for ultra-heavy-duty use on flat and uneven floors and a working height of up to 7.8m. The product complies with the EN 1004-1 standard and Decree 2004-924.
  • Work with level offset
  • Welded aluminium scaffold, 50 mm uprights and rungs

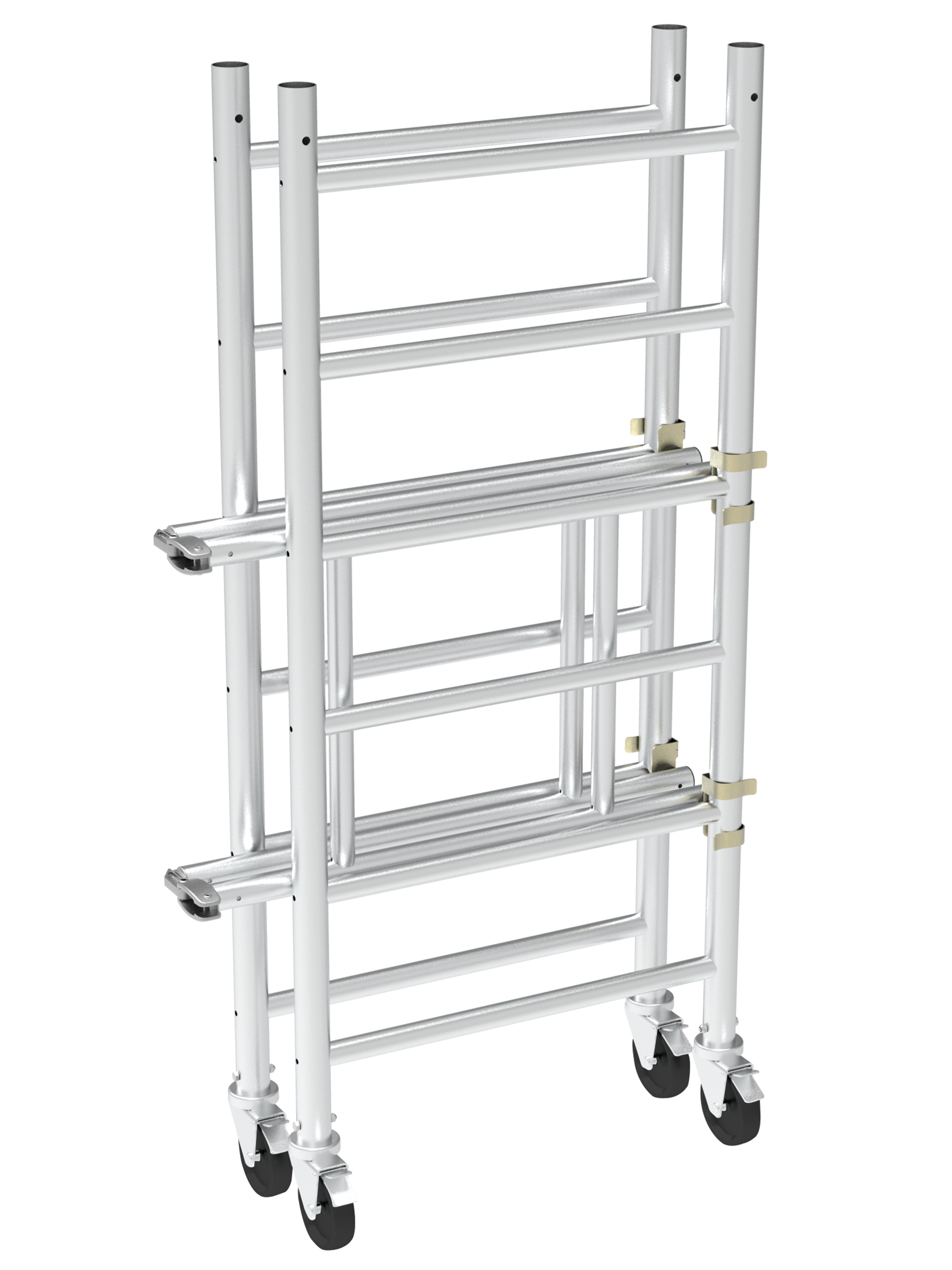

  • Removable folding base

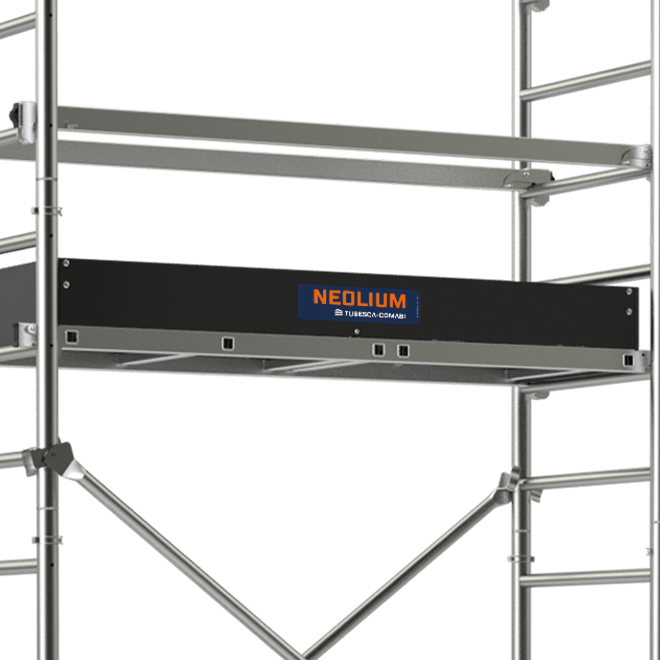

  • 165 x 60 cm platform
  • Patented Ergoblock® system

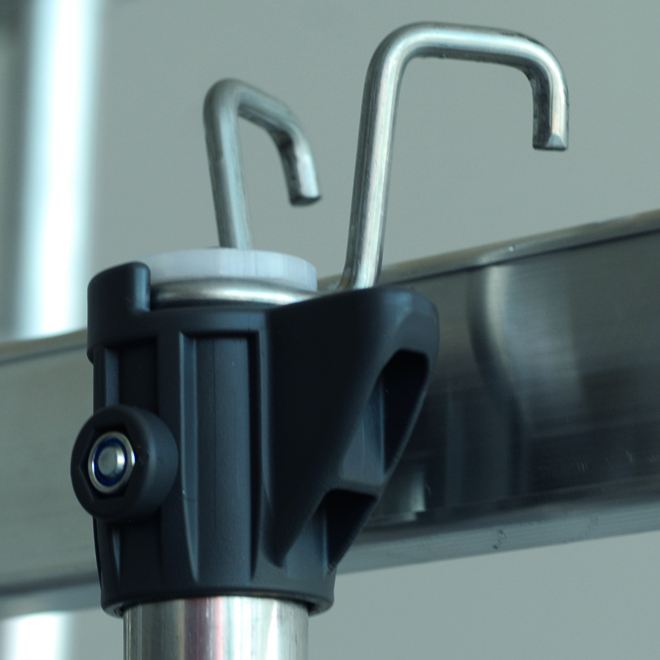

  • Safety assembly with T-Grip system

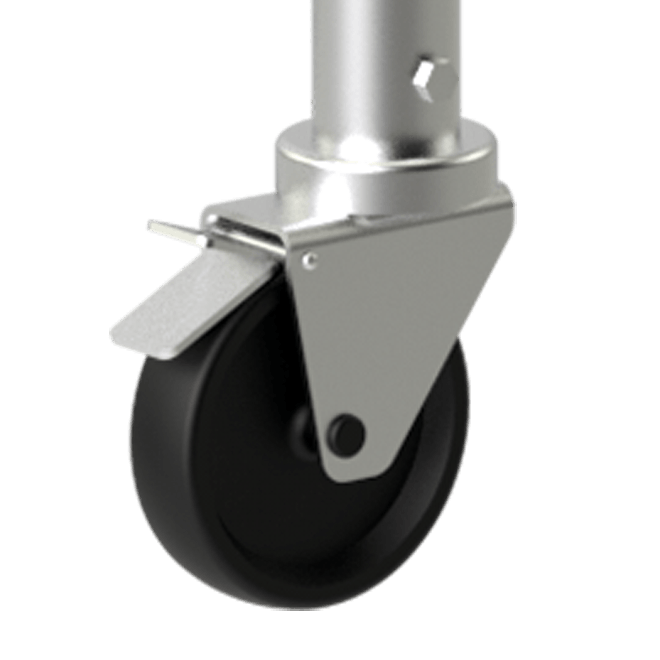

  • Black non-track wheels Ø 125 mm in polypropylene
See the
different models

Max work / access height (m)

4,00m
Ref : 02920002Work / access height (m) : 4,00mProduct overall height (m) : 3,20m
Platform height (m) : 2,00Number of platforms : 1Width with stabilizers folded : 0,90
Width with stabilizers open : 2,60Stabilizers folded length : 1,90Stabilizers deployed length : 3,60
Weight (kg) : 61,00kgEAN barcode : 3534740161990
Ref : 02920003Work / access height (m) : 4,80mProduct overall height (m) : 3,90m
Platform height (m) : 2,80Number of platforms : 1Width with stabilizers folded : 0,90
Width with stabilizers open : 2,60Stabilizers folded length : 1,90Stabilizers deployed length : 3,60
Weight (kg) : 70,40kgEAN barcode : 3534740162003
Ref : 02920004Work / access height (m) : 5,60mProduct overall height (m) : 4,70m
Platform height (m) : 3,60Number of platforms : 2Width with stabilizers folded : 0,90
Width with stabilizers open : 3,90Stabilizers folded length : 1,90Stabilizers deployed length : 4,90
Weight (kg) : 106,20kgEAN barcode : 3534740162010
Ref : 02920005Work / access height (m) : 7,00mProduct overall height (m) : 6,20m
Platform height (m) : 5,00Number of platforms : 2Width with stabilizers folded : 0,90
Width with stabilizers open : 3,90Stabilizers folded length : 1,90Stabilizers deployed length : 4,90
Weight (kg) : 117,00kgEAN barcode : 3534740162027
Ref : 02920007Work / access height (m) : 7,80mProduct overall height (m) : 6,90m
Platform height (m) : 5,80Number of platforms : 3Width with stabilizers folded : 0,90
Width with stabilizers open : 3,90Stabilizers folded length : 1,90Stabilizers deployed length : 4,90
Weight (kg) : 143,00kgEAN barcode : 3534740174846
Technical featuresDescription
UseIntensive
Type of floorFlat and uneven floor
Max access / working height (m)7,80m
Platform length (m)1,54m
Platform width (m)0,60m
MaterialAluminium
Max load (kg / m²)200kg/m²
Warranty (years)5
StandardEN 1004-1
Decree2004/924
