PLATINIUM 3-SECTION COMBINATION

Highly versatile

Use : Ultra intensive

The Platinium aluminium 2-way combination ladder has a splayed base, very safe wraparound pads and patented Quickstep articulation which set the standard for the market. It guarantees strength, flexibility and safety for all users. Models with 3x7 to 3x12 rungs provide access to heights of up to 8.88 metres and 4 positions. It complies with the EN 131 standard, decree 96-333 and the NF, VGS and GS quality labels.

The most versatile model on the market.

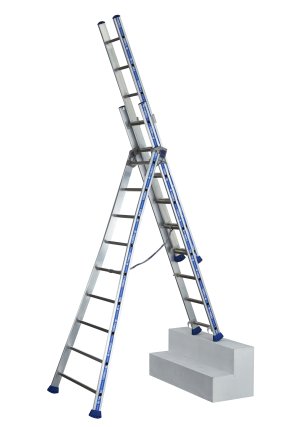

Designed for resisting heavy loads on all types of surfaces.

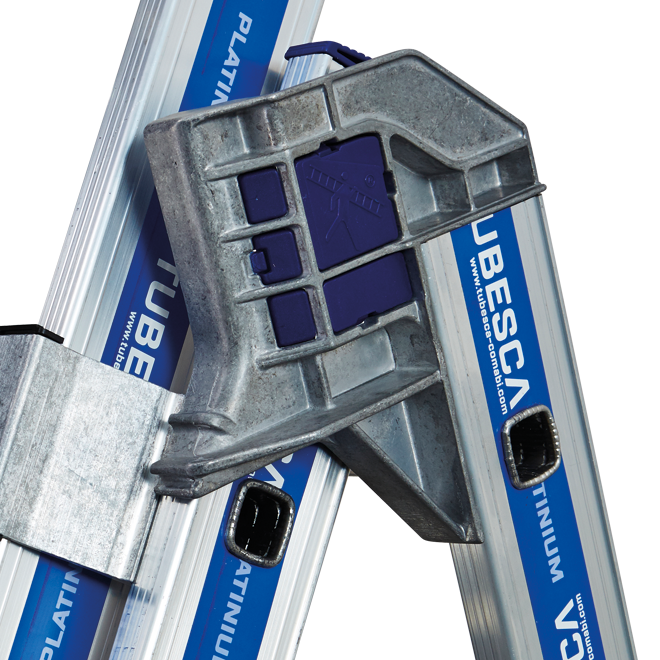

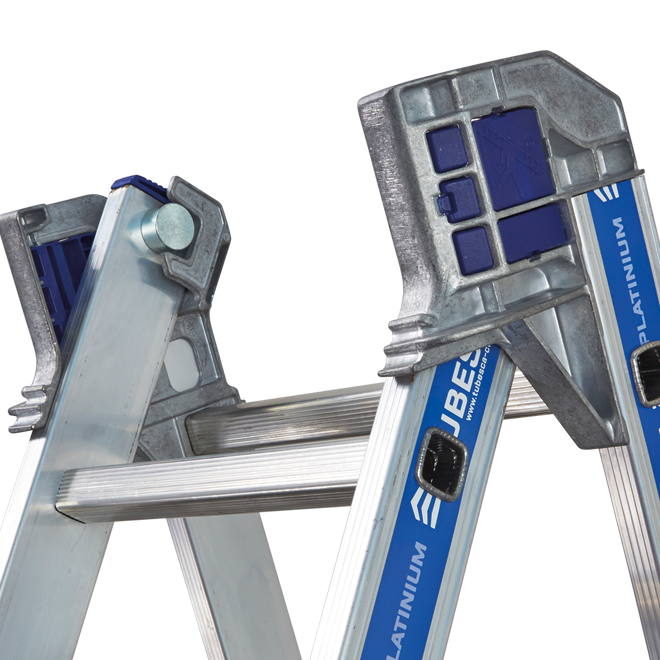

The high-resistance cast aluminium hinge is unbreakable.
The upper section is held onto the central section by two sliding mechanisms at the top and two hooks fitted with a safety lock at the bottom.
Reinforced uprights for long life and stability.
High-security covering footpads.
Extra thick upright width.
Resistance tests more stringent and dimensions larger than required by standards and decrees.
Non-slip footpads the substantial thickness of which provide maximum safety.

Use : Ultra intensive

See the
different models

Holding strap on 3x10 and 3x12

Max work / access height (m)

5,80m

Ref : 02443607	Folded product height (m) : 2,09	Aerial height : 3,41
Product deployed height (m) : 4,89	Number of rungs / steps : 3x7	Weight (kg) : 13,10kg
Wheelbase (m) : 1,45	Section : 66	Min work / access height (m) : 3,00m
Max work / access height (m) : 5,80m	Aerial access height : 4,33	EAN barcode : 3178740187927

6,08m

Ref : 02443608	Folded product height (m) : 2,37	Aerial height : 3,69
Product deployed height (m) : 5,17	Number of rungs / steps : 3x8	Weight (kg) : 14,80kg
Wheelbase (m) : 1,54	Section : 66	Min work / access height (m) : 3,28m
Max work / access height (m) : 6,08m	Aerial access height : 4,61	EAN barcode : 3178740187934

6,92m

Ref : 02443609	Folded product height (m) : 2,65	Aerial height : 4,25
Product deployed height (m) : 6,01	Number of rungs / steps : 3x9	Weight (kg) : 18,20kg
Wheelbase (m) : 1,85	Section : 79,5	Min work / access height (m) : 3,56m
Max work / access height (m) : 6,92m	Aerial access height : 5,17	EAN barcode : 3178740187941

7,76m

Ref : 02443610	Folded product height (m) : 2,93	Aerial height : 4,81
Product deployed height (m) : 6,85	Number of rungs / steps : 3x10	Weight (kg) : 20,00kg
Wheelbase (m) : 1,97	Section : 79,5	Min work / access height (m) : 3,84m
Max work / access height (m) : 7,76m	Aerial access height : 5,73	EAN barcode : 3178740187958

8,59m

Ref : 02443612	Folded product height (m) : 3,49	Aerial height : 5,65
Product deployed height (m) : 7,69	Number of rungs / steps : 3x12	Weight (kg) : 24,30kg
Wheelbase (m) : 2,47	Section : 79,5	Min work / access height (m) : 4,40m
Max work / access height (m) : 8,59m	Aerial access height : 6,57	EAN barcode : 3178740187965

Technical
features

Technical features	Description
Use	Ultra intensive
Type of floor	Flat and uneven floor
Max access / working height (m)	8,59m
Material	Aluminium
Maximum load (kg)	150kg
Warranty (years)	5
Standard	EN 131
Decree	96333
