PLATINIUM SINGLE

The essential ladder for finishing work

Use : Ultra intensive

Download the product data sheet

This Platinium aluminium single ladder is available in models ranging from 6 to 24 rungs for access to heights of up to 7.8 metres. Its wraparound pads and reinforced uprights guarantee strength and stability. It complies with the EN 131 standard and decree 96-333 and has the NF quality label.

Reliable and robust, very easy to handle.
Reinforced upright profiles with 3 x 3 mm rungs.

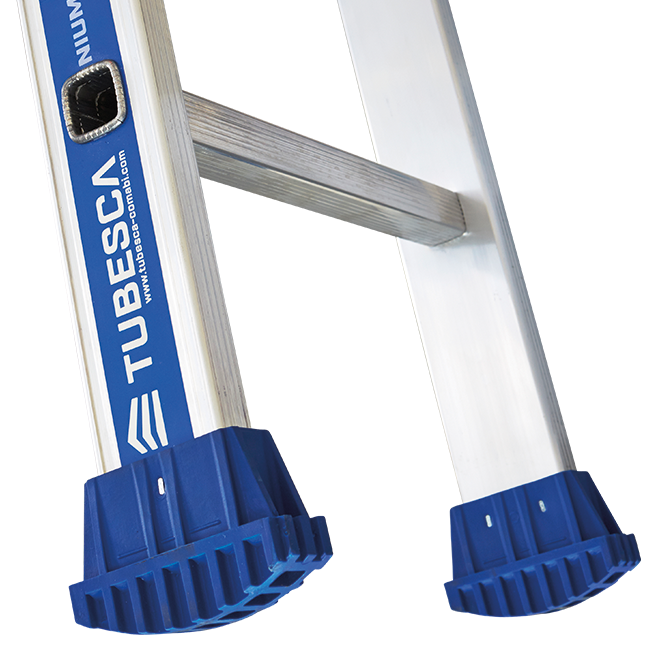

+3m models : Additional base with reinforced footpads
-3.00m models: Non-slip notched footpads

Download the product data sheet

Use : Ultra intensive

See the
different models

The ladders with C35 hooks (24126-1, 241211-1, 241212-1) and C5 hooks (24126-2, 24127-2, 24121-2) are available on request.

Max work / access height (m)

2,75m

Ref : 02410206	Product deployed height (m) : 1,85	Space from wall (m) : 0,69
Number of rungs / steps : 6	Weight (kg) : 3,20kg	Wheelbase (m) : 0,36
Section : 66	Max work / access height (m) : 2,75m	EAN barcode : 3178740005429

3,03m

Ref : 02410207	Product deployed height (m) : 2,13	Space from wall (m) : 0,80
Number of rungs / steps : 7	Weight (kg) : 3,70kg	Wheelbase (m) : 0,36
Section : 66	Max work / access height (m) : 3,03m	EAN barcode : 3178740185305

3,31m

Ref : 02410208	Product deployed height (m) : 2,41	Space from wall (m) : 0,90
Number of rungs / steps : 8	Weight (kg) : 4,10kg	Wheelbase (m) : 0,36
Section : 66	Max work / access height (m) : 3,31m	EAN barcode : 3178740185312

3,87m

Ref : 02410210	Product deployed height (m) : 2,97	Space from wall (m) : 1,11
Number of rungs / steps : 10	Weight (kg) : 5,00kg	Wheelbase (m) : 0,36
Section : 66	Max work / access height (m) : 3,87m	EAN barcode : 3178740185329

4,46m

Ref : 02410212	Product deployed height (m) : 3,56	Space from wall (m) : 1,32
Number of rungs / steps : 12	Weight (kg) : 6,20kg	Width with stabilizers open : 0,81
Wheelbase (m) : 0,36	Section : 66	Max work / access height (m) : 4,46m
EAN barcode : 3178740162207

5,02m

Ref : 02410214	Product deployed height (m) : 4,12	Space from wall (m) : 1,53
Number of rungs / steps : 14	Weight (kg) : 7,50kg	Width with stabilizers open : 0,91
Wheelbase (m) : 0,43	Section : 66	Max work / access height (m) : 5,02m
EAN barcode : 3178740162214

5,58m

Ref : 02410216	Product deployed height (m) : 4,68	Space from wall (m) : 1,74
Number of rungs / steps : 16	Weight (kg) : 8,40kg	Width with stabilizers open : 0,91
Wheelbase (m) : 0,43	Section : 66	Max work / access height (m) : 5,58m
EAN barcode : 3178740162221

5,86m

Ref : 02410217	Product deployed height (m) : 4,96	Space from wall (m) : 1,85
Number of rungs / steps : 17	Weight (kg) : 9,70kg	Width with stabilizers open : 1,01
Wheelbase (m) : 0,43	Section : 79,5	Max work / access height (m) : 5,86m
EAN barcode : 3178740162238

6,70m

Ref : 02410220	Product deployed height (m) : 5,80	Space from wall (m) : 2,16
Number of rungs / steps : 20	Weight (kg) : 11,30kg	Width with stabilizers open : 1,11
Wheelbase (m) : 0,43	Section : 79,5	Max work / access height (m) : 6,70m
EAN barcode : 3178740162252

7,82m

Ref : 02410224	Product deployed height (m) : 6,92	Space from wall (m) : 2,58
Number of rungs / steps : 24	Weight (kg) : 13,40kg	Width with stabilizers open : 1,11
Wheelbase (m) : 0,43	Section : 79,5	Max work / access height (m) : 7,82m
EAN barcode : 3178740162269

Technical
features

Technical features	Description
Use	Ultra intensive
Type of floor	Flat floor
Max access / working height (m)	7,82m
Material	Aluminium
Maximum load (kg)	150kg
Warranty (years)	5
Standard	EN 131
Decree	96333; Warenwet
