PRONOR 2-SECTION ROPE-OPERATED

The essential professional unit for medium levels

Use : Intensive

Download the product data sheet

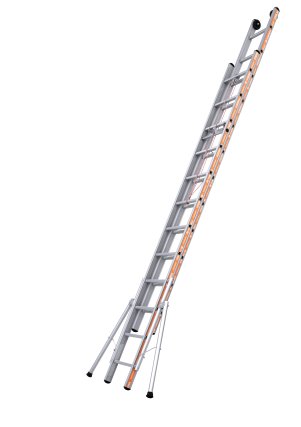

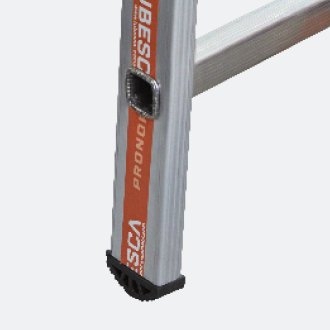

The Pronor rope-operated aluminium extension ladder has 2 sections and reaches up to 12.55 metres. Its slot-in pads, 30 x 30 mm rungs and cast aluminium pivot lock guarantee reliability and strength in all environments. It complies with the EN 131 standard and decree 96-333. It has the NF, GS and VGS quality labels.

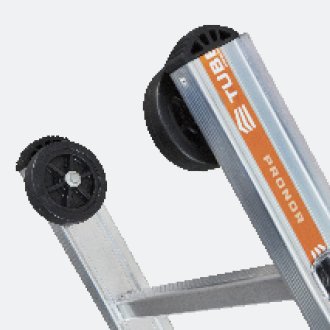

Runners in polyamide for easy-sliding sections.
Locking pivot in high-resistance cast aluminium.
Very easy to handle and erect.

Download the product data sheet

Use : Intensive

See the
different models

Max work / access height (m)

6,94m

Ref : 01232112	Folded product height (m) : 3,52	Product deployed height (m) : 6,04
Number of rungs / steps : 2x12	Weight (kg) : 18,70kg	Width with stabilizers open : 1,23
Section : 79	Min work / access height (m) : 4,42m	Max work / access height (m) : 6,94m
Aerial access height : 6,94	EAN barcode : 3178740186418

7,51m

Ref : 01232113	Folded product height (m) : 3,80	Product deployed height (m) : 6,60
Number of rungs / steps : 2x13	Weight (kg) : 19,50kg	Width with stabilizers open : 1,23
Section : 79	Min work / access height (m) : 4,70m	Max work / access height (m) : 7,51m
Aerial access height : 7,51	EAN barcode : 3178740186425

8,36m

Ref : 01232115	Folded product height (m) : 4,37	Product deployed height (m) : 7,45
Number of rungs / steps : 2x15	Weight (kg) : 21,80kg	Width with stabilizers open : 1,23
Section : 79	Min work / access height (m) : 5,26m	Max work / access height (m) : 8,36m
Aerial access height : 8,36	EAN barcode : 3178740186432

8,91m

Ref : 01232116	Folded product height (m) : 4,65	Product deployed height (m) : 8,01
Number of rungs / steps : 2x16	Weight (kg) : 24,20kg	Width with stabilizers open : 1,23
Section : 90	Min work / access height (m) : 5,56m	Max work / access height (m) : 8,91m
Aerial access height : 8,91	EAN barcode : 3178740186449

10,04m

Ref : 01232118	Folded product height (m) : 5,21	Product deployed height (m) : 9,13
Number of rungs / steps : 2x18	Weight (kg) : 26,70kg	Width with stabilizers open : 1,23
Section : 90	Min work / access height (m) : 6,16m	Max work / access height (m) : 10,04m
Aerial access height : 10,04	EAN barcode : 3178740186456

10,88m

Ref : 01232120	Folded product height (m) : 5,77	Product deployed height (m) : 9,97
Number of rungs / steps : 2x20	Weight (kg) : 29,20kg	Width with stabilizers open : 1,23
Section : 90	Min work / access height (m) : 6,67m	Max work / access height (m) : 10,88m
Aerial access height : 10,88	EAN barcode : 3178740186463

12,55m

Ref : 01232123	Folded product height (m) : 6,61	Product deployed height (m) : 11,65
Number of rungs / steps : 2x23	Weight (kg) : 35,50kg	Width with stabilizers open : 1,23
Section : 101	Min work / access height (m) : 7,51m	Max work / access height (m) : 12,55m
Aerial access height : 12,55	EAN barcode : 3178740186470

Technical
features

Technical features	Description
Use	Intensive
Type of floor	Flat floor
Max access / working height (m)	12,55m
Material	Aluminium
Maximum load (kg)	150kg
Warranty (years)	5
Standard	EN 131
Decree	96333
