PRONOR 3-SECTION ROPE-OPERATED

The professional model for high level work

Use : Intensive

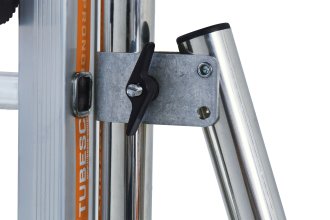

The Pronor rope-operated aluminium extension ladder complies with the EN 131 standard and decree 96-333. It has the NF, GS and VGS quality labels. With 3 sections, it can reach up to 13.96 metres. It has slot-in pads, 30 x 30 mm rungs and a cast aluminium pivot lock guaranteeing reliability and strength in all environments. .

Compact when folded for easy storage and transport.
For accessing really high levels.

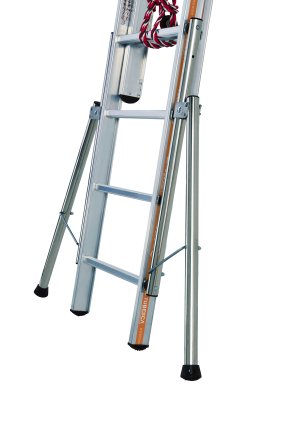

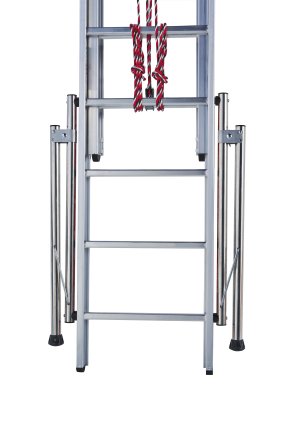

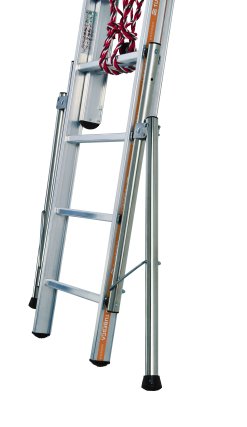

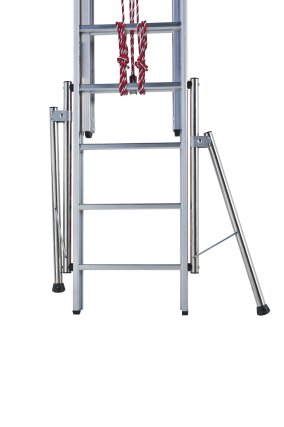

Side stabilisers for better stability

Use : Intensive

See the
different models

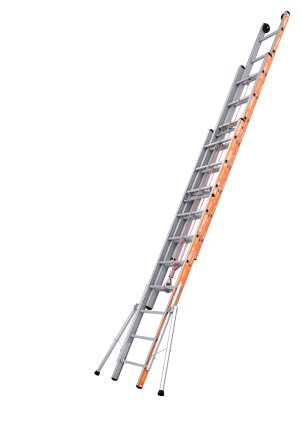

Max work / access height (m)

7,78m

Ref : 01233110	Folded product height (m) : 2,96	Product deployed height (m) : 6,88
Number of rungs / steps : 3x10	Weight (kg) : 27,50kg	Width with stabilizers open : 1,36
Section : 66/76/66	Min work / access height (m) : 3,88m	Max work / access height (m) : 7,78m
Aerial access height : 7,78	EAN barcode : 3178740186708

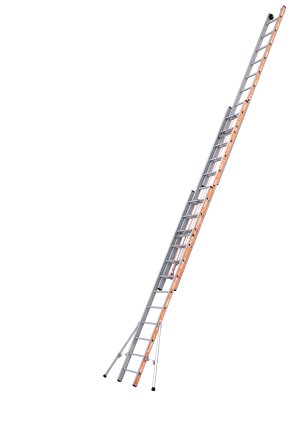

9,47m

Ref : 01233112	Folded product height (m) : 3,53	Product deployed height (m) : 8,57
Number of rungs / steps : 3x12	Weight (kg) : 32,00kg	Width with stabilizers open : 1,36
Section : 79/91/79	Min work / access height (m) : 4,44m	Max work / access height (m) : 9,47m
Aerial access height : 9,47	EAN barcode : 3178740186715

10,59m

Ref : 01233114	Folded product height (m) : 4,09	Product deployed height (m) : 9,41
Number of rungs / steps : 3x14	Weight (kg) : 40,00kg	Width with stabilizers open : 1,36
Section : 79/91/79	Min work / access height (m) : 5,00m	Max work / access height (m) : 10,59m
Aerial access height : 10,59	EAN barcode : 3178740186722

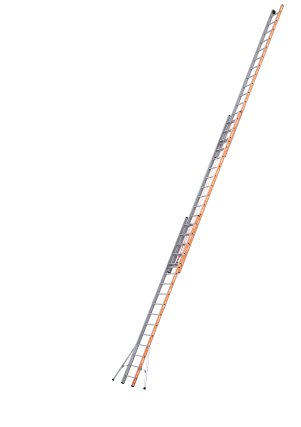

12,28m

Ref : 01233116	Folded product height (m) : 4,65	Product deployed height (m) : 11,09
Number of rungs / steps : 3x16	Weight (kg) : 42,50kg	Width with stabilizers open : 1,36
Section : 90/103/90	Min work / access height (m) : 5,56m	Max work / access height (m) : 12,28m
Aerial access height : 12,28	EAN barcode : 3178740186739

13,67m

Ref : 01233118	Folded product height (m) : 5,21	Product deployed height (m) : 12,77
Number of rungs / steps : 3x18	Weight (kg) : 49,50kg	Width with stabilizers open : 1,36
Section : 90/103/90	Min work / access height (m) : 6,12m	Max work / access height (m) : 13,67m
Aerial access height : 13,67	EAN barcode : 3178740186746

Technical
features

Technical features	Description
Use	Intensive
Type of floor	Flat floor
Max access / working height (m)	13,67m
Material	Aluminium
Maximum load (kg)	150kg
Warranty (years)	5
Standard	EN 131
Decree	96333
