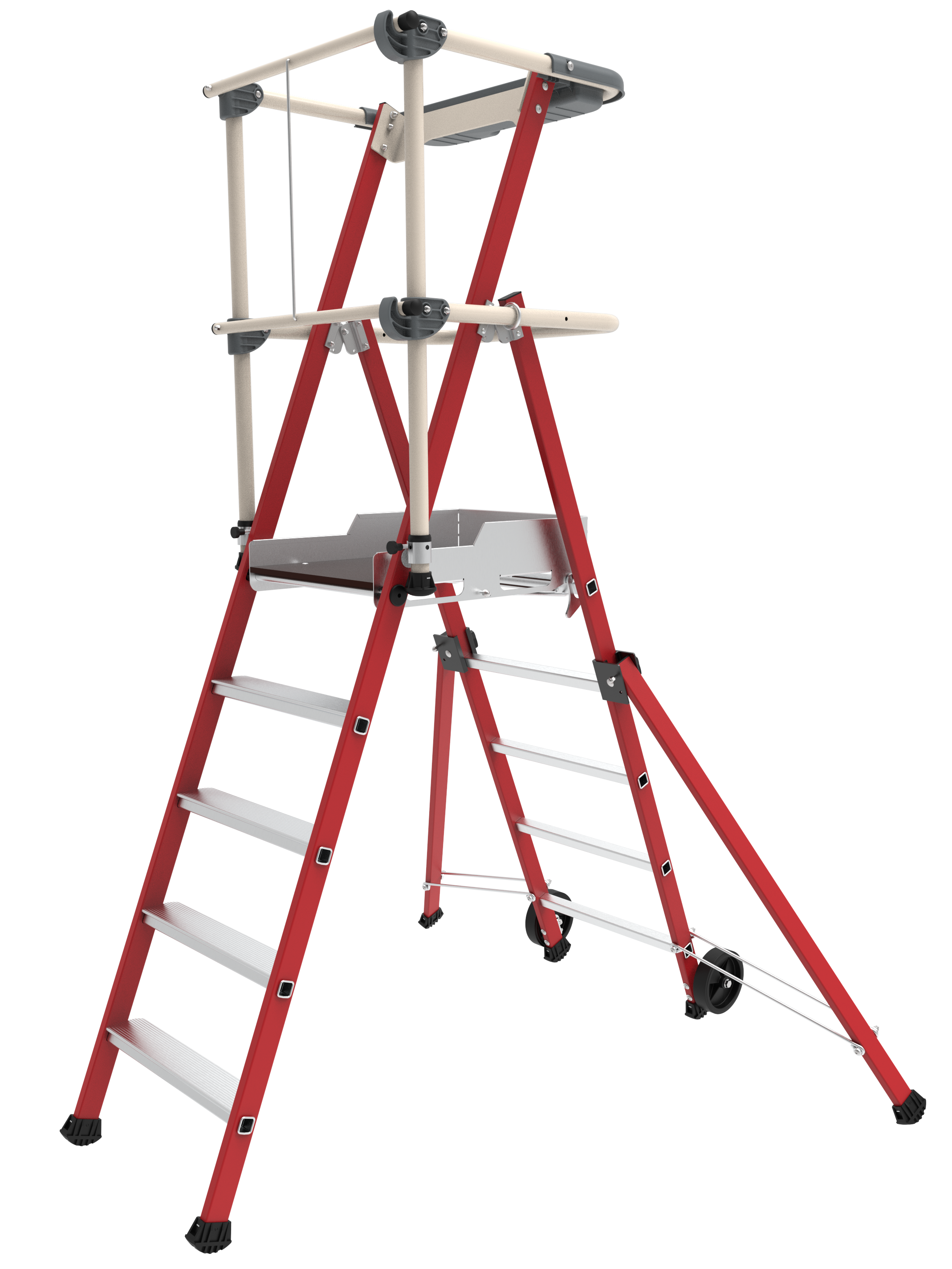

SHERPA FIBERGLASS

The comfort of a unique insulated platform

The insulated Sherpa is the leading fixed individual workstation on the market for the electrical trade.
Safety first: This Sherpa meets the requirements of the applicable French and European standards, enabling users to work safely, offering them protection against low-voltage currents (<1,500 volts), and it features a semi-automatic rilsan-coated guardrail which is easy for users to set up.
Comfortable working in any situation: The insulated Sherpa is easy to transport thanks to its large ribbed wheels, and it offers a large workspace.
A responsible product: The insulated Sherpa is the result of an exacting designed process, taking challenges such as sustainability, recyclability, and CO2 impacts into consideration at every stage, from manufacturing to end-of-life.
  • With the glass fibre uprights, work can be done in total safety without any risk of electric shocks.

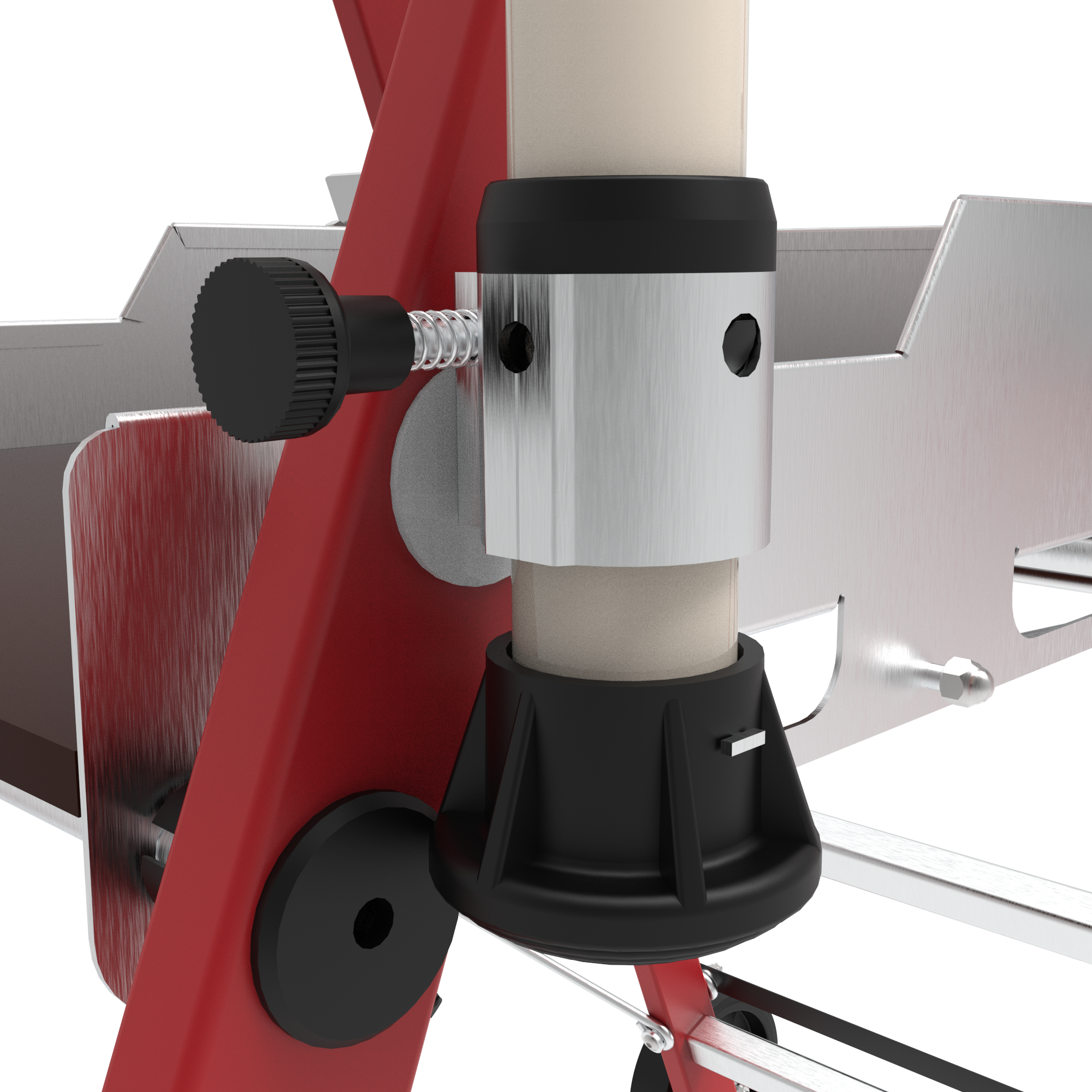

  • Rigid 360° guardrail with insulated Rilsan-coated protection.
  • Independent fold-away stabilizers with patented millimetric adjustment system.

  • Non-slip 600 x 420 mm platform with integrated toeboards (height: 100 mm).

  • Ribbed non-slip steps crimped in place (width: 80 mm).

  • Large capacity tool-tray with carrying handles.
  • Two large diameter wheels for easy moving.

  • Standard EN 50528 defines the values for protecting users against low voltage currents up to 1,500 volts. The flashover test is carried out at 10,000 volts.

Max work / access height (m)

Ref : 02272833Platform height (m) : 0,70Designation : SHERPA FIBERGLASS - 3 STEPS
Folded product height (m) : 2,07Number of rungs / steps : 3Weight (kg) : 22,20kg
Wheelbase (m) : 1,26Package dimensions : 2,07 x 0,66 x 0,32Work / access height (m) : 2,70m
EAN barcode : 3178740161934
Ref : 02272834Platform height (m) : 0,93Designation : SHERPA FIBERGLASS - 4 STEPS
Folded product height (m) : 2,30Number of rungs / steps : 4Weight (kg) : 24,00kg
Wheelbase (m) : 1,40Package dimensions : 2,30 x 0,66 x 0,32Work / access height (m) : 2,93m
EAN barcode : 3178740161941
Ref : 02272835Platform height (m) : 1,17Designation : SHERPA FIBERGLASS - 5 STEPS
Folded product height (m) : 2,55Number of rungs / steps : 5Weight (kg) : 24,80kg
Wheelbase (m) : 1,60Package dimensions : 2,55 x 0,66 x 0,32Work / access height (m) : 3,17m
EAN barcode : 3178740161958
Technical featuresDescription
UseUltra intensive
Type of floorFlat floor
Max access / working height (m)3,17m
Dimension stairs / steps (mm)80mm
MaterialFiberglass
Maximum load (kg)150kg
Warranty (years)2
StandardPIRL NFP 93353 ; EN 50528
Decree2004/924
