SHERPASCOPIC

Optimal comfort on every type of ground

Use : Ultra intensive

Download the product data sheet

This Tubesca aluminium mobile platform sets the standard for telescopic platforms. Available in several models at heights of up to 4.5 metres with 3-4/4-6/7-9/7-10 steps. Its reinforced uprights, wide platform, adjustable stabilisers and semi-automatic rigid guardrails make the Sherpascopic an extremely robust, stable product. It has a tool carrier, transport wheels and 80 mm steps. It meets the PIR-PIRL standards for mobile platforms, complies with decree 2004-924, standard EN 131-7 and has the NF quality label.

Intuitive high-resistance level offset system.
Solid guardrail.

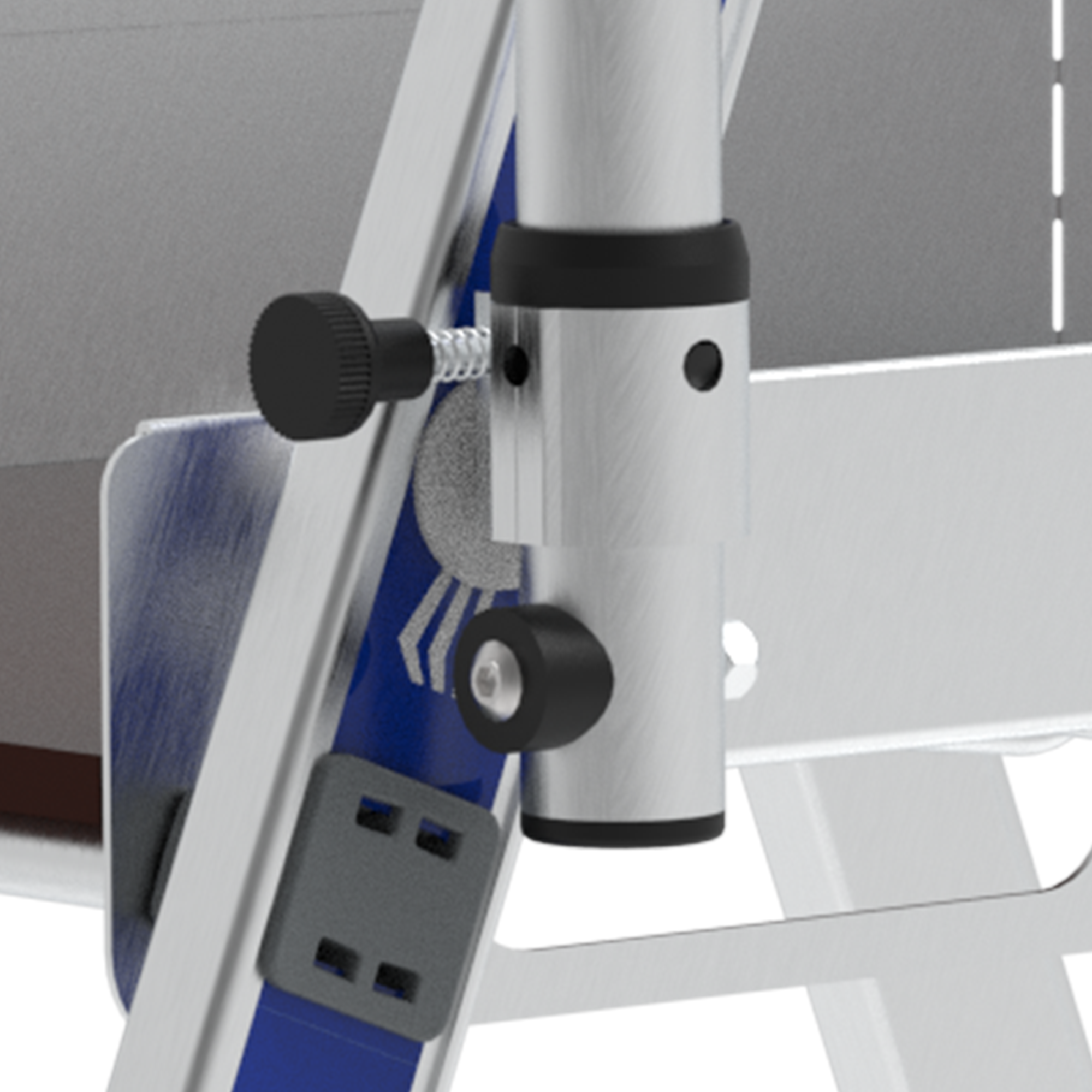

Stabilizers with a patented millimetric adjustment system.
Non-slip 600 x 420 mm platform with integrated toeboards.
Ribbed non-slip rungs crimped in place (30 x 30 mm).
Extremely strong handrails.
Automatic interlock between the different elements.

Download the product data sheet

Use : Ultra intensive

See the
different models

Delivered in shrink film with POS brochure. The platform is counted as a step. Model 02272250 is certified to be NF PIRL 93353 compliant. Models 02272251 /02272252 and 02272253 are NF PIR 93352 certified.

Max work / access height (m)

3,02m

Ref : 02272250	Min work / access height (m) : 2,78m	Max work / access height (m) : 3,02m
Folded product height (m) : 2,13	Platform height (m) : 0,78	Maximum platform height (m) : 1,02m
Wheelbase (m) : 1,39	Max wheelbase (m) : 1,57m	Package dimensions : 2,13 x 0,66 x 0,38
Number of rungs / steps : 3-4	Max nb of steps : 4	Weight (kg) : 23,10kg
EAN barcode : 3178740098698

3,53m

Ref : 02272251	Min work / access height (m) : 3,07m	Max work / access height (m) : 3,53m
Folded product height (m) : 2,44	Platform height (m) : 1,07	Maximum platform height (m) : 1,53m
Wheelbase (m) : 1,61	Max wheelbase (m) : 1,97m	Package dimensions : 2,44 x 0,66 x 0,32
Number of rungs / steps : 5-7	Max nb of steps : 7	Weight (kg) : 26,40kg
EAN barcode : 3178740098704

4,23m

Ref : 02272252	Min work / access height (m) : 3,76m	Max work / access height (m) : 4,23m
Folded product height (m) : 3,20	Platform height (m) : 1,76	Maximum platform height (m) : 2,23m
Wheelbase (m) : 2,15	Max wheelbase (m) : 2,52m	Package dimensions : 3,20 x 0,66 x 0,38
Number of rungs / steps : 8-10	Max nb of steps : 10	Weight (kg) : 31,00kg
EAN barcode : 3178740098711

4,46m

Ref : 02272253	Min work / access height (m) : 3,76m	Max work / access height (m) : 4,46m
Folded product height (m) : 3,20	Platform height (m) : 1,76	Maximum platform height (m) : 2,46m
Wheelbase (m) : 2,15	Max wheelbase (m) : 2,73m	Package dimensions : 3,20 x 0,66 x 0,38
Number of rungs / steps : 8-11	Max nb of steps : 11	Weight (kg) : 33,00kg
EAN barcode : 3178740152567

Technical
features

Technical features	Description
Use	Ultra intensive
Type of floor	Flat and uneven floor
Max access / working height (m)	4,46m
Dimensions platform (mm)	600x420mm
Dimension stairs / steps (mm)	80mm
Material	Aluminium
Maximum load (kg)	150kg
Warranty (years)	5
Standard	PIR NFP 93353 ; PIR NFP 93352 ; EN 131/7
Decree	2004/924
