STARLINE 3-SECTION COMBINATION

The most versatile unit

Use : Moderate

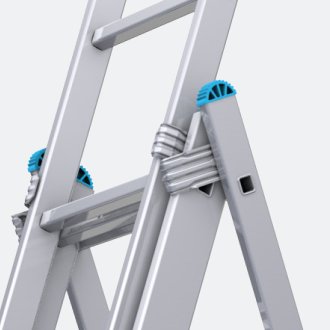

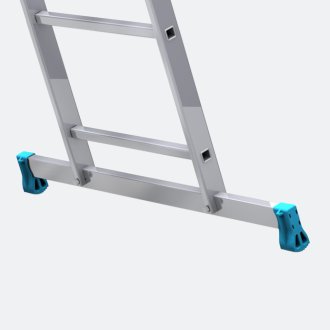

The Starline S+ aluminium 3-way combination ladder has an added base, steel articulations and a retaining strap, guaranteeing simplicity and stability. Models with 3x7 to 3x12 rungs provide access to heights of up to 8.21 metres and 4 positions. It complies with the EN 131 standard, decree 96-333 and the GS quality label.

For use on flat surfaces only.
Very easy sliding section to handle with simple, dependable locking system.
Use only on flat floors.

Use : Moderate

See the
different models

3rd section non-detachable for 3x11 and 3x12-rung models

Max work / access height (m)

5,16m

Ref : 00143307	Folded product height (m) : 1,99	Aerial height : 3,09
Product deployed height (m) : 4,26	Number of rungs / steps : 3x7	Weight (kg) : 9,10kg
Width with stabilizers open : 0,81	Section : 53/66/53	Min work / access height (m) : 2,89m
Max work / access height (m) : 5,16m	Aerial access height : 3,99	EAN barcode : 3178740188665

6,00m

Ref : 00143308	Folded product height (m) : 2,27	Aerial height : 3,65
Product deployed height (m) : 5,10	Number of rungs / steps : 3x8	Weight (kg) : 10,80kg
Width with stabilizers open : 0,91	Section : 53/78/53	Min work / access height (m) : 3,17m
Max work / access height (m) : 6,00m	Aerial access height : 4,55	EAN barcode : 3178740188672

6,84m

Ref : 00143309	Folded product height (m) : 2,55	Aerial height : 4,21
Product deployed height (m) : 5,94	Number of rungs / steps : 3x9	Weight (kg) : 12,50kg
Width with stabilizers open : 1,01	Section : 61/78/61	Min work / access height (m) : 3,45m
Max work / access height (m) : 6,84m	Aerial access height : 5,11	EAN barcode : 3178740188689

7,40m

Ref : 00143310	Folded product height (m) : 2,83	Aerial height : 4,77
Product deployed height (m) : 6,50	Number of rungs / steps : 3x10	Weight (kg) : 14,60kg
Width with stabilizers open : 1,01	Section : 66/86/66	Min work / access height (m) : 3,73m
Max work / access height (m) : 7,40m	Aerial access height : 5,67	EAN barcode : 3178740188696

7,68m

Ref : 00143311	Folded product height (m) : 3,11	Aerial height : 5,05
Product deployed height (m) : 6,78	Number of rungs / steps : 3x11	Weight (kg) : 15,70kg
Width with stabilizers open : 1,11	Section : 78/86/78	Min work / access height (m) : 4,01m
Max work / access height (m) : 7,68m	Aerial access height : 5,95	EAN barcode : 3178740188702

8,24m

Ref : 00143312	Folded product height (m) : 3,39	Aerial height : 5,33
Product deployed height (m) : 7,34	Number of rungs / steps : 3x12	Weight (kg) : 17,30kg
Width with stabilizers open : 1,11	Section : 78/92/78	Min work / access height (m) : 4,29m
Max work / access height (m) : 8,24m	Aerial access height : 6,23	EAN barcode : 3178740188719

Technical
features

Technical features	Description
Use	Moderate
Type of floor	Flat floor
Max access / working height (m)	8,24m
Material	Aluminium
Maximum load (kg)	150kg
Warranty (years)	2
Standard	EN 131
Decree	96333
