TRUCK’ ACCESS PLATFORM

MOBILE UNLOADING DOCK

Use : Intensive

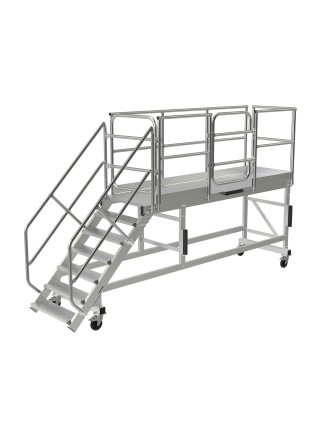

This Tubesca aluminium platform is a real mobile unloading dock. Its 1.40 metre high platform will align with most transport vehicles and allow you to load or unload safely. Available with guardrails and duckboard steel steps, it provides complete safety in any situation.

2 models with a fixed or removable base mounted on 4 wheels with brakes.
The removable base model is moved with a simple, intuitive manual system.
Each product comes with two types of steps : non-slip grooved treads aluminium or steel grating.
Comfortable top platform in chequer-plate aluminium or non-slip steel grating with rear and side guardrails.
The ladder section is fitted with high-comfort steps 225 mm wide.
The unit is made totally safe by two fixed handrails

Use : Intensive

See the
different models

Max work / access height (m)

3,40m

Ref : 05911150	Designation : Removable base with steel grating steps	Work / access height (m) : 3,40m
Platform height (m) : 1,40	Wheelbase (m) : 4,32	Package dimensions : 2,50 x 1,20 x 4,32
Number of rungs / steps : 7	Weight (kg) : 249,00kg	EAN barcode : 3178740151928

3,40m

Ref : 05911100	Designation : Removable base with aluminium steps	Work / access height (m) : 3,40m
Platform height (m) : 1,40	Wheelbase (m) : 4,32	Package dimensions : 2,50 x 1,20 x 4,32
Number of rungs / steps : 7	Weight (kg) : 184,00kg	EAN barcode : 3178740151911

3,40m

Ref : 05911050	Designation : Fixed base with steel grating steps	Work / access height (m) : 3,40m
Platform height (m) : 1,40	Wheelbase (m) : 4,32	Package dimensions : 2,50 x 1,03 x 4,23
Number of rungs / steps : 7	Weight (kg) : 223,00kg	EAN barcode : 3178740151904

3,40m

Ref : 05911000	Designation : Fixed base with aluminium steps	Work / access height (m) : 3,40m
Platform height (m) : 1,40	Wheelbase (m) : 4,32	Package dimensions : 2,50 x 1,03 x 4,23
Number of rungs / steps : 7	Weight (kg) : 158,00kg	EAN barcode : 3178740151898

Technical
features

Technical features	Description
Use	Intensive
Type of floor	Flat floor
Max access / working height (m)	3,40m
Dimension stairs / steps (mm)	225mm
Material	Aluminium
Maximum load (kg)	200kg
Warranty (years)	5
Standard	EN 14122
Recommendations	Comply with standard NF 14122
