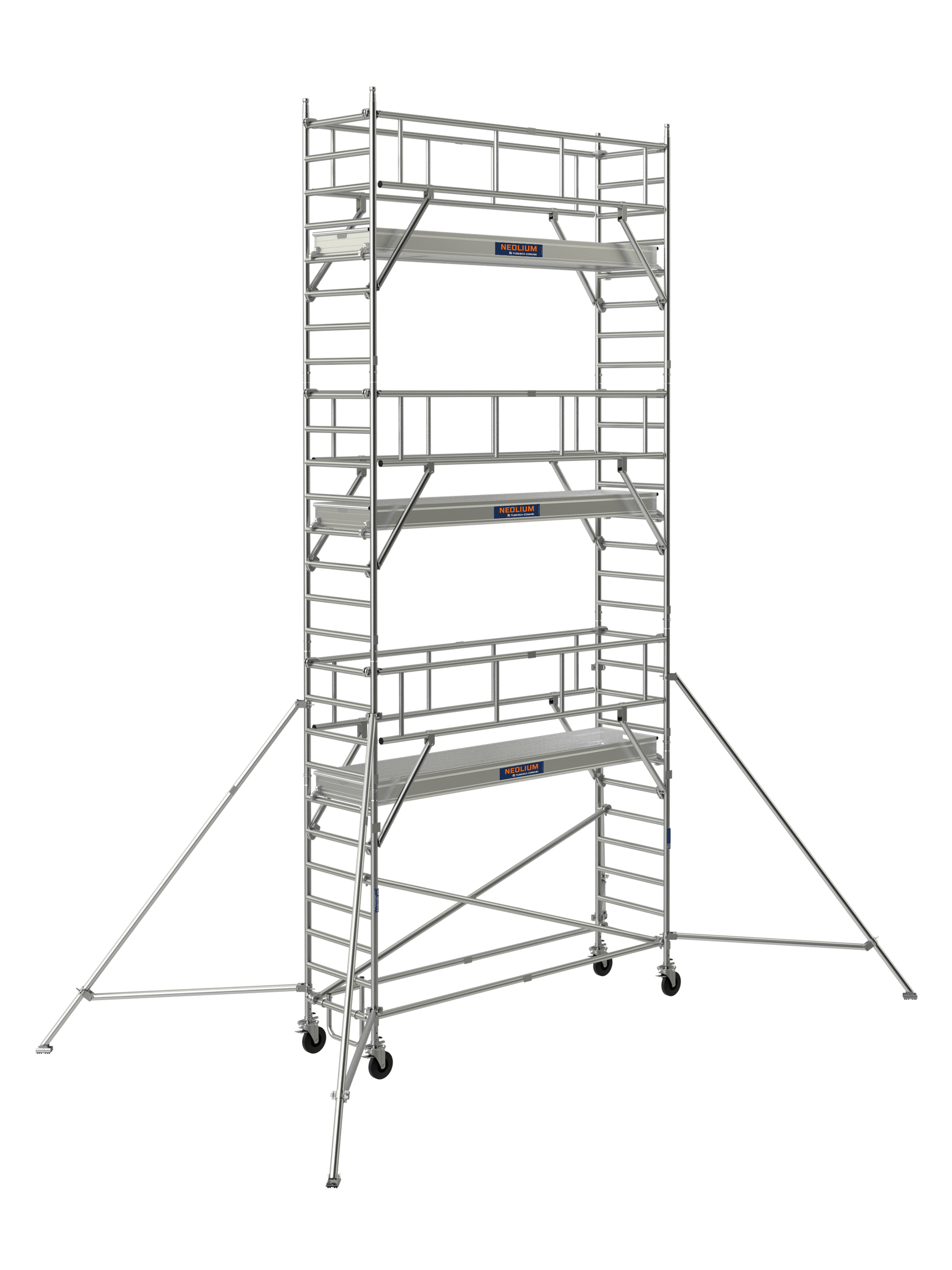

Neolium 300 Box

HIGH-PERFORMANCE WELDED ALUMINIUM

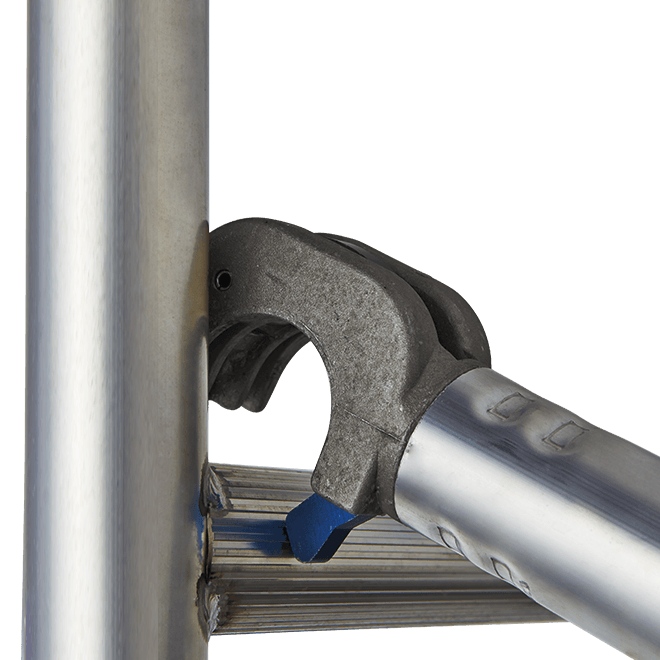

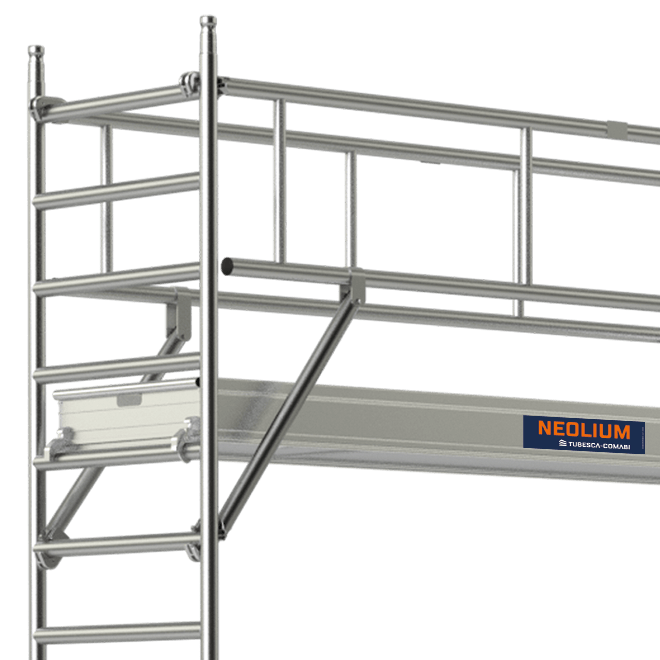

  • Advanced guardrail system with diagonals
  • Welded aluminium scaffold, 50 mm uprights and rungs

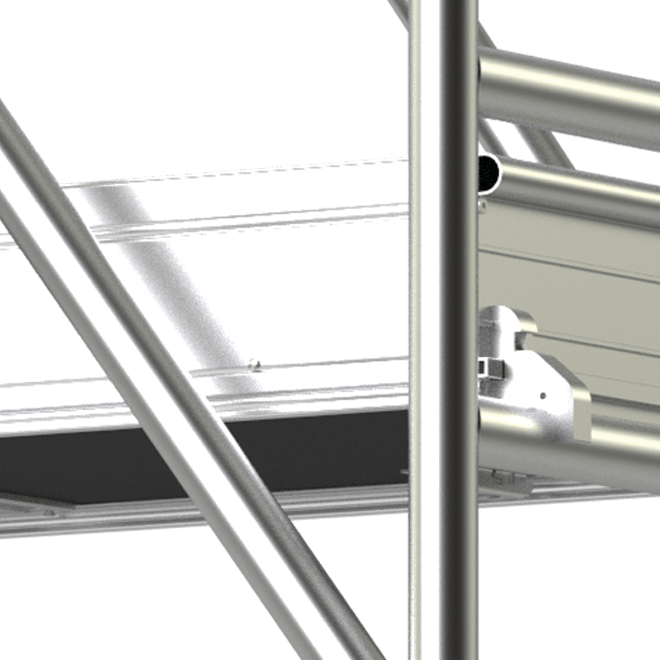

  • One-piece platform

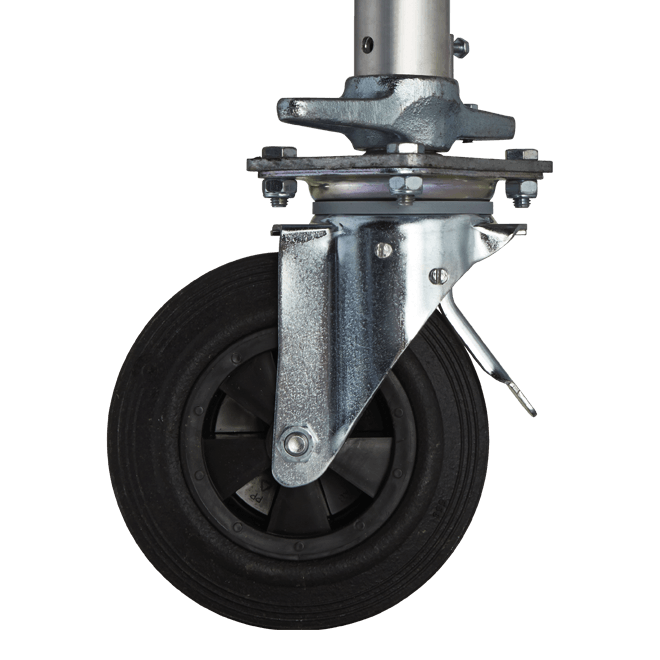

  • Wheels Ø 200 mm with powerful locking system and millimetric adjustment system
  • Work with level offset.
See the
different models

Max work / access height (m)

4,00m
Ref : 02923502Work / access height (m) : 4,00mProduct overall height (m) : 3,13m
Platform height (m) : 2,00Number of platforms : 1Width with stabilizers folded : 0,92
Width with stabilizers open : 3,42Stabilizers folded length : 3,26Stabilizers deployed length : 5,66
Weight (kg) : 122,00kgEAN barcode : 3534740165936
Ref : 02923504Work / access height (m) : 6,00mProduct overall height (m) : 5,13m
Platform height (m) : 4,00Number of platforms : 2Width with stabilizers folded : 0,92
Width with stabilizers open : 3,42Stabilizers folded length : 3,26Stabilizers deployed length : 5,66
Weight (kg) : 183,00kgEAN barcode : 3534740165943
Ref : 02923506Work / access height (m) : 8,00mProduct overall height (m) : 7,13m
Platform height (m) : 6,00Number of platforms : 3Width with stabilizers folded : 0,92
Width with stabilizers open : 3,42Stabilizers folded length : 3,26Stabilizers deployed length : 5,66
Weight (kg) : 245,00kgEAN barcode : 3534740165950
Ref : 02923508Work / access height (m) : 10,00mProduct overall height (m) : 9,13m
Platform height (m) : 8,00Number of platforms : 4Width with stabilizers folded : 0,92
Width with stabilizers open : 4,71Stabilizers folded length : 3,26Stabilizers deployed length : 6,90
Weight (kg) : 322,00kgEAN barcode : 3534740165967
Ref : 02923510Work / access height (m) : 12,00mProduct overall height (m) : 11,13m
Platform height (m) : 10,00Number of platforms : 5Width with stabilizers folded : 0,92
Width with stabilizers open : 4,71Stabilizers folded length : 3,26Stabilizers deployed length : 6,90
Weight (kg) : 384,00kgEAN barcode : 3534740165974
Ref : 02923512Work / access height (m) : 14,00mProduct overall height (m) : 13,13m
Platform height (m) : 12,00Number of platforms : 6Width with stabilizers folded : 0,92
Width with stabilizers open : 4,71Stabilizers folded length : 3,26Stabilizers deployed length : 6,90
Weight (kg) : 445,00kgEAN barcode : 3534740165981
Technical featuresDescription
UseUltra intensive
Type of floorFlat and uneven floor
Max access / working height (m)14,00m
Platform length (m)2,90m
Platform width (m)0,66m
Floor space length (m)3,26m
Floor space width (m)0,92m
MaterialAluminium
Max load (kg / m²)200kg/m²
Warranty (years)5
StandardEN 1004-1
Decree2004/924
