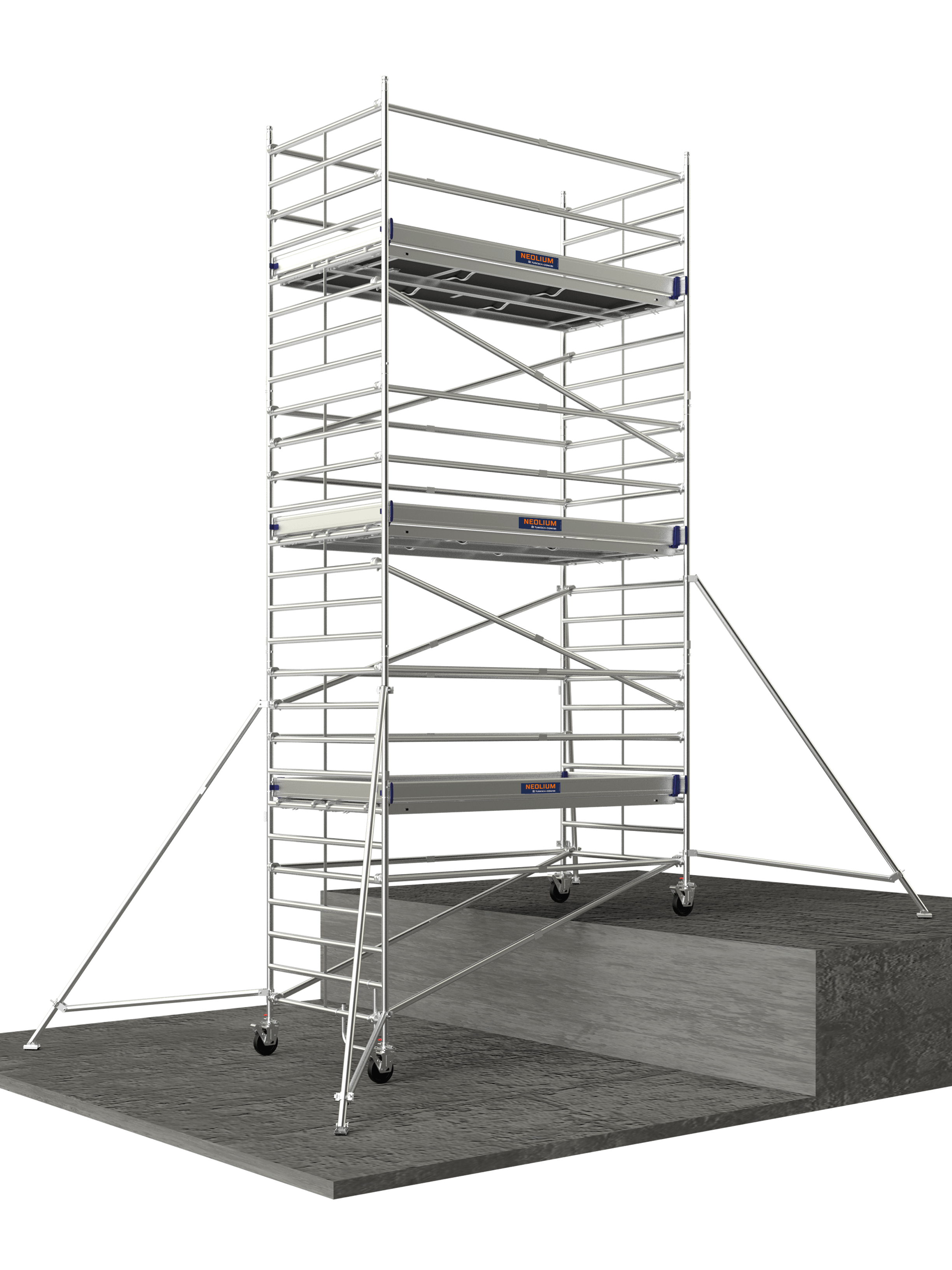

NEOLIUM 600 LINE

HIGH-PERFORMANCE WELDED ALUMINIUM

  • Brace version
  • Welded aluminium scaffold, 50 mm uprights and rungs
  • Platform with toeboards apart integrate
  • Wheels Ø 200 mm with powerful locking system and millimetric adjustment system
  • Work with level offset.
  • Platform 2,90 x 1,32 m
See the
different models

Max work / access height (m)

4,00m
Ref : 02926802Work / access height (m) : 4,00mProduct overall height (m) : 3,13m
Platform height (m) : 2,00Number of platforms : 1Width with stabilizers folded : 1,64
Width with stabilizers open : 4,31Stabilizers folded length : 3,26Stabilizers deployed length : 5,61
Weight (kg) : 158,00kgEAN barcode : 3534740166230
Ref : 02926804Work / access height (m) : 6,00mProduct overall height (m) : 5,13m
Platform height (m) : 4,00Number of platforms : 2Width with stabilizers folded : 1,64
Width with stabilizers open : 4,31Stabilizers folded length : 3,26Stabilizers deployed length : 5,61
Weight (kg) : 253,00kgEAN barcode : 3534740166247
Ref : 02926806Work / access height (m) : 8,00mProduct overall height (m) : 7,13m
Platform height (m) : 6,00Number of platforms : 3Width with stabilizers folded : 1,64
Width with stabilizers open : 4,31Stabilizers folded length : 3,26Stabilizers deployed length : 5,61
Weight (kg) : 349,00kgEAN barcode : 3534740166254
Ref : 02926808Work / access height (m) : 10,00mProduct overall height (m) : 9,13m
Platform height (m) : 8,00Number of platforms : 4Width with stabilizers folded : 1,64
Width with stabilizers open : 5,40Stabilizers folded length : 3,26Stabilizers deployed length : 6,90
Weight (kg) : 460,00kgEAN barcode : 3534740166261
Ref : 02926810Work / access height (m) : 12,00mProduct overall height (m) : 11,13m
Platform height (m) : 10,00Number of platforms : 5Width with stabilizers folded : 1,64
Width with stabilizers open : 5,40Stabilizers folded length : 3,26Stabilizers deployed length : 6,90
Weight (kg) : 556,00kgEAN barcode : 3534740166278
Ref : 02926812Work / access height (m) : 14,00mProduct overall height (m) : 13,13m
Platform height (m) : 12,00Number of platforms : 6Width with stabilizers folded : 1,64
Width with stabilizers open : 5,40Stabilizers folded length : 3,26Stabilizers deployed length : 6,90
Weight (kg) : 651,00kgEAN barcode : 3534740166285
Technical featuresDescription
UseUltra intensive
Type of floorFlat and uneven floor
Max access / working height (m)14,00m
Platform length (m)2,90m
Platform width (m)1,32m
Floor space length (m)3,26m
Floor space width (m)1,64m
MaterialAluminium
Max load (kg / m²)200kg/m²
Warranty (years)5
StandardEN 1004-1
Decree2004/924
